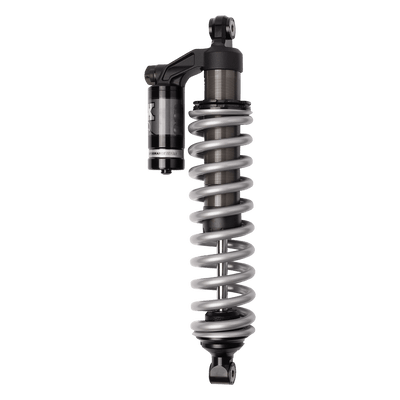

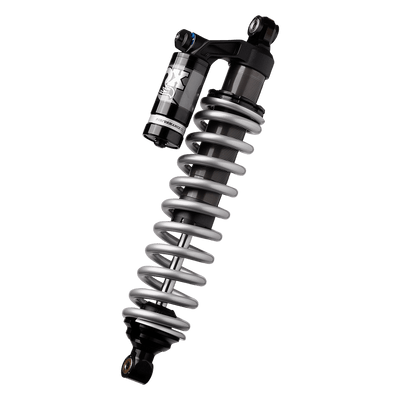

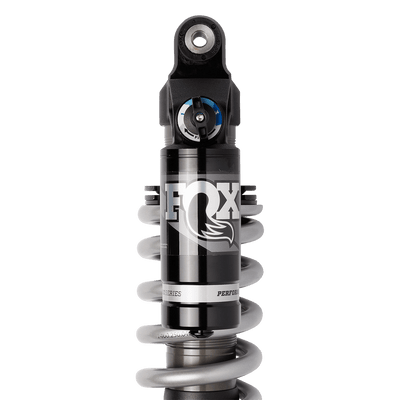

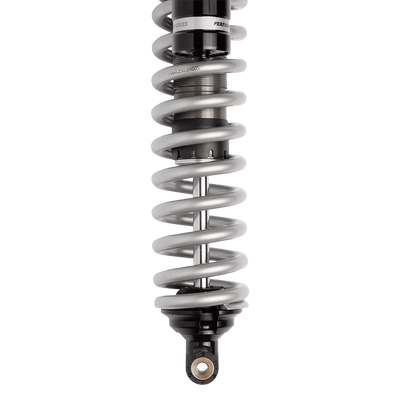

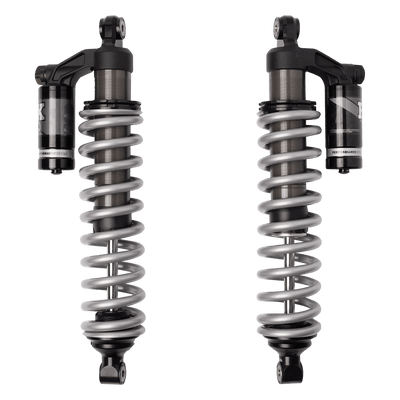

Fox Factory Polaris Ranger XP 1000 Performance Series 2.0 Coil-Over QS3 Shocks

The FOX Performance Series 2.0 QS3 shock kit is a direct bolt-on replacement for your Polaris Ranger. Build your Ranger into a capable vehicle ready to tackle the off-road terrain that will leave you grinning.

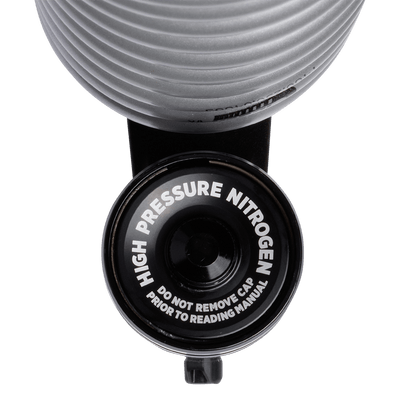

Maintain control through washboards, rocks, and big dips without losing damping control by replacing your stock emulsion shocks with 2.0 QS3 shocks. The FOX shocks feature an internal floating piston (IFP) housed in the piggyback reservoir to separate the nitrogen charge from the shock oil.

The Ranger’s soft stock springs are replaced with aftermarket springs to retain comfort and prevent harsh bottom-outs through the rough stuff.

Quickly adapt your shocks to terrain conditions, load, and driving preference with Quick Switch 3-position compression damping adjustment. Enjoy a soft ride on smooth trails and compliance while rock crawling. Add compression to manage load and maximize compression damping to increase bottom-out resistance so you’re ready to catch some air.

FOX 2.0 QS3 shocks are rugged, featuring hard-anodized aluminum bodies and reservoirs to resist corrosion. 5/8-inch hard chromed shafts promote smooth operation and seal life. FOX shocks are fully rebuildable. Service or custom-valve the shocks for your specific riding application.

FRONT

• Part Number: 885-06-135-2
• Adjustable Quick Switch 3-position compression settings
• Adjustable Spring preload
• High-flow velocity-sensitive damping
• Piggyback reservoir
• Ultra-durable bottom-out bumper
• Type-III hard-anodized aluminum body and reservoir
• 5/8” hard-chromed shaft
• Series: Performance
• Travel: 6.52
• Extended length: 18.82
• Compressed Length: 12.3
• Top Mount: Eyelet
• Bottom Mount: Eyelet

• Part Number: 885-06-138-4
• Adjustable Quick Switch 3-position compression settings
• Adjustable Spring preload
• High-flow velocity-sensitive damping
• Piggyback reservoir
• Ultra-durable bottom-out bumper
• Type-III hard-anodized aluminum body and reservoir
• 5/8” hard-chromed shaft
• Series: Performance
• Travel: 7.12
• Extended length: 23.07
• Compressed Length: 15.95
• Top Mount: Eyelet
• Bottom Mount: Eyelet

Rear

• Part Number: 885-06-137-2
• Adjustable Quick Switch 3-position compression settings
• Adjustable Spring preload
• High-flow velocity-sensitive damping
• Piggyback reservoir
• Ultra-durable bottom-out bumper
• Type-III hard-anodized aluminum body and reservoir
• 5/8” hard-chromed shaft
• Series: Performance
• Travel: 7.12
• Extended length: 23.07
• Compressed Length: 15.95
• Top Mount: Eyelet
• Bottom Mount: Eyelet

• Part Number: 885-06-139-4
• Adjustable Quick Switch 3-position compression settings
• Adjustable Spring preload
• High-flow velocity-sensitive damping
• Piggyback reservoir
• Ultra-durable bottom-out bumper
• Type-III hard-anodized aluminum body and reservoir
• 5/8” hard-chromed shaft
• Series: Performance
• Travel: 7.12
• Extended length: 23.07
• Compressed Length: 15.95
• Top Mount: Eyelet
• Bottom Mount: Eyelet
